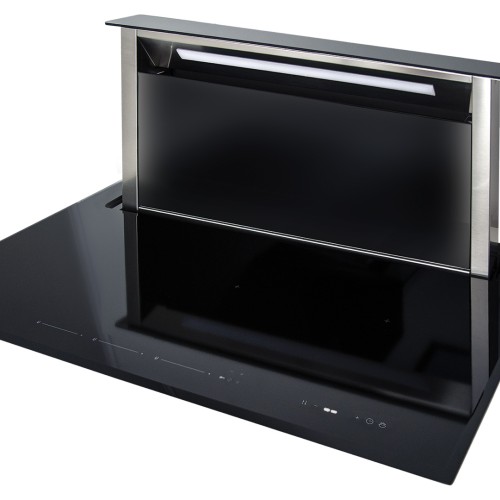

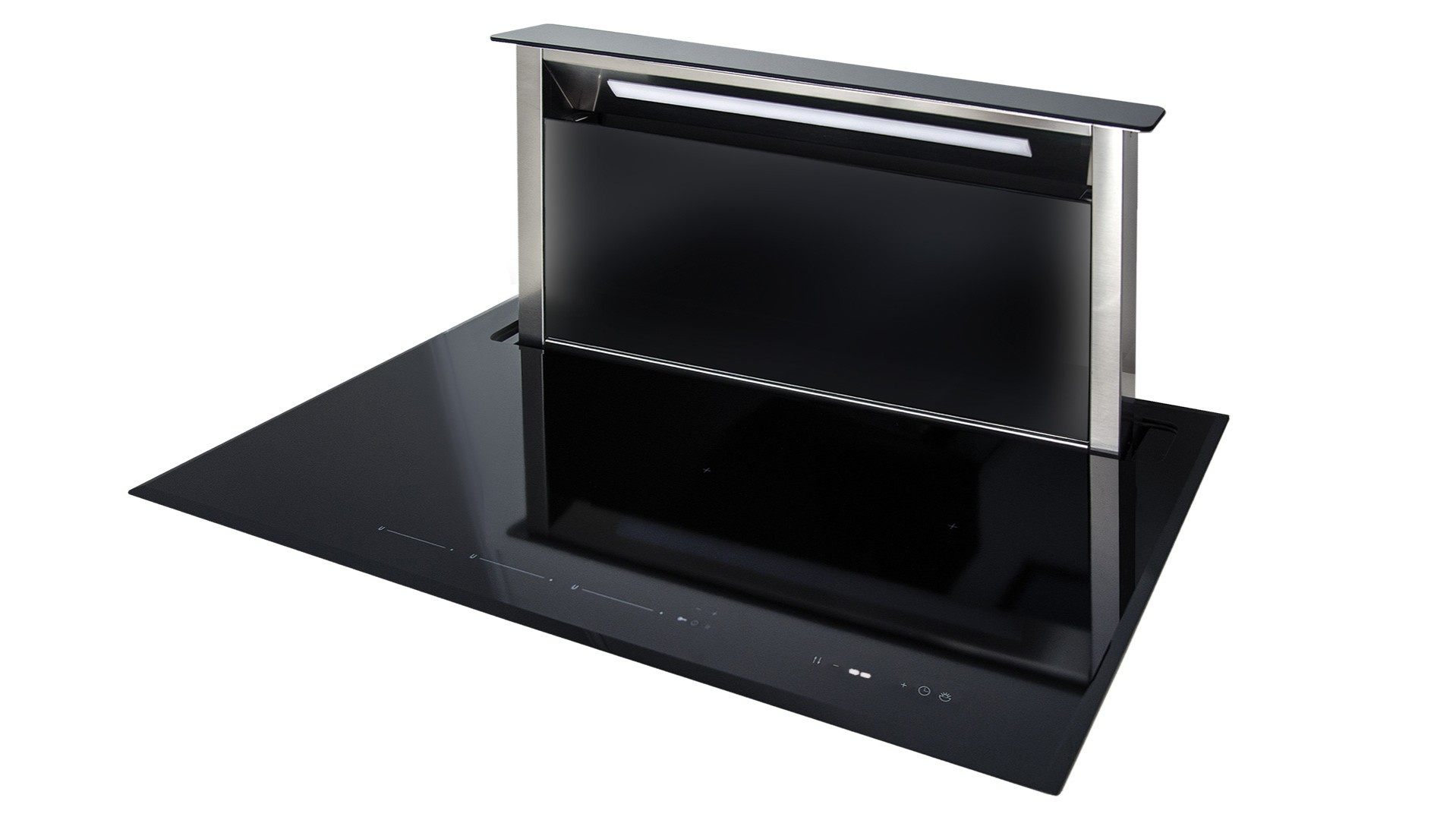

Induction hob with Downdraft hood integrated.
You can control the downdraft hood through the touch control on the induction hob.

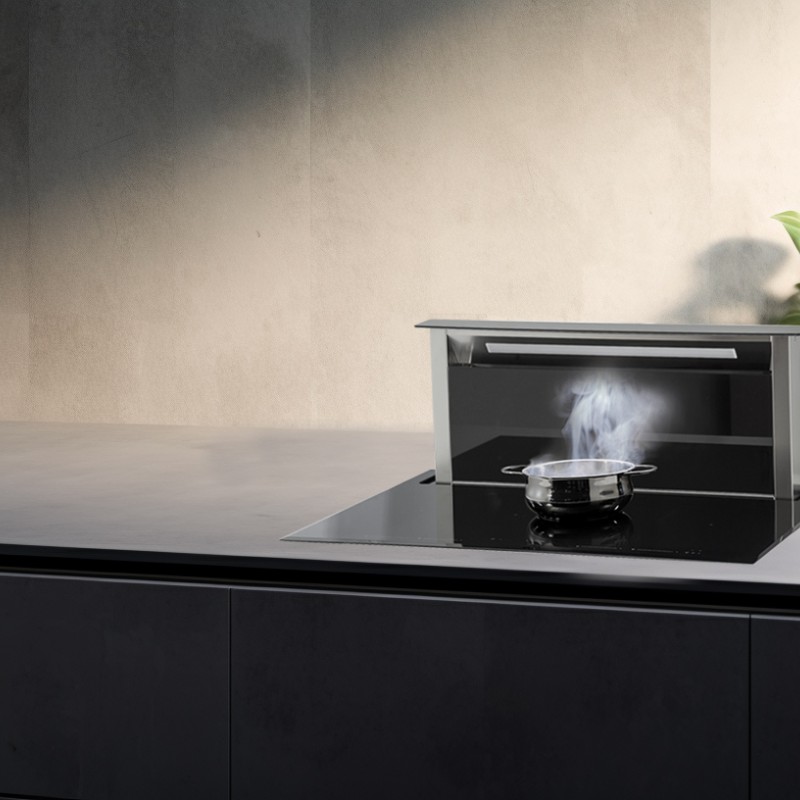

While rising from the worktop, the hood exhausts all fumes and cooking vapours.
Led light perfectly lightens the hob.
The G5 technology on the induction hob allows to get very fastly the perfect cooking of food, compared to standard hobs
S-DDH1
Motor: 1000 m3/h (not included)
Available also in external motor
Lighting: 1x5 W LED strip
Control panel: Touch Control 4 speeds+light switch+timer
integrated on the Induction Hob
Filter: anodized aluminum (4+1 layers)
Material: Stainless steel AISI 304
See drawing
TECHNOLOGY OF THE HOB
Induction G5
Beveled edges black glass
Automatic heat-up function
Safety Lock
Timer function
Over-heating operation
"Keep Warm" function
Pause and recall function
Bridge function
Touch controls
Booster function on all zones
Cooking output
4 zones 184x220mm 2100W; Power 3700W
Max power 7,4 kW
Electric rating 220-240V (50/60 Hz)
ENERGY LABEL
| PRODUCT | DIM. | MOTOR | IDENTIFIER | EEI | |||
|---|---|---|---|---|---|---|---|
| S-DDH1 | 900x510 | on board | D009088TC1292415 | A | ENERGY LABEL | TECH FICHE | Drawing |
| S-DDH1 EM | 900x510 | SEM1 1000m3/h | D009088TC1142415 | B | ENERGY LABEL | TECH FICHE | Drawing |
| S-DDH1 EM | 900x510 | SEM2 1000m3/h | D009088TC1152415 | C | ENERGY LABEL | TECH FICHE | Drawing |
| S-DDH1 EM | 900x510 | SEM8 1200m3/h | D009088TC1172415 | C | ENERGY LABEL | TECH FICHE | Drawing |
| S-DDH1 EM | 900x510 | SEM10 800m3/h | D009088PB1302415 | C | ENERGY LABEL | TECH FICHE | Drawing |
| S-DDH1 EM | 900x510 | SEM12 1000m3/h | D002088PB1312415 | A | ENERGY LABEL | TECH FICHE | Drawing |
