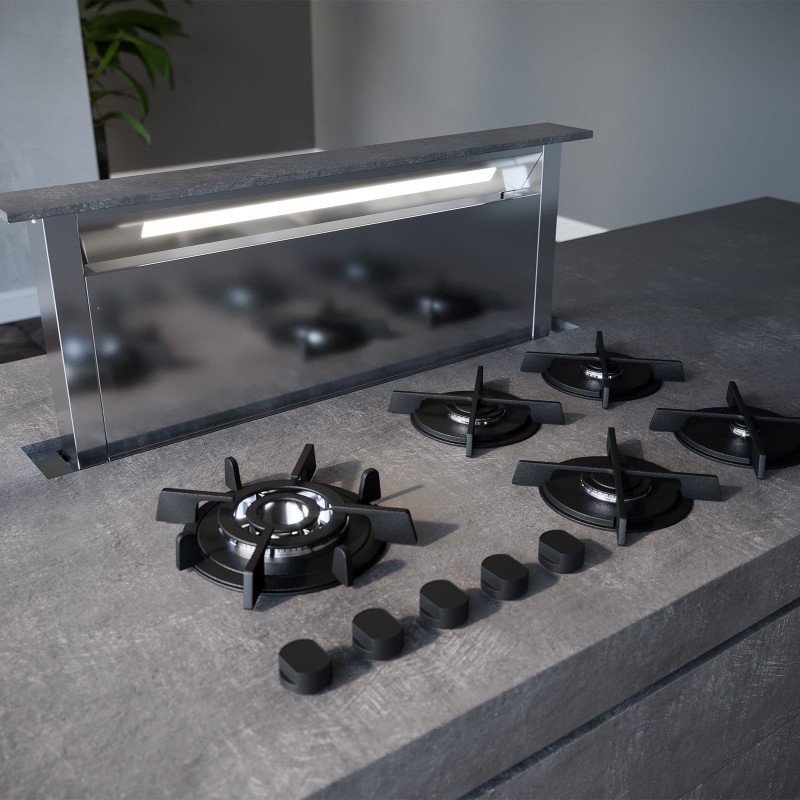

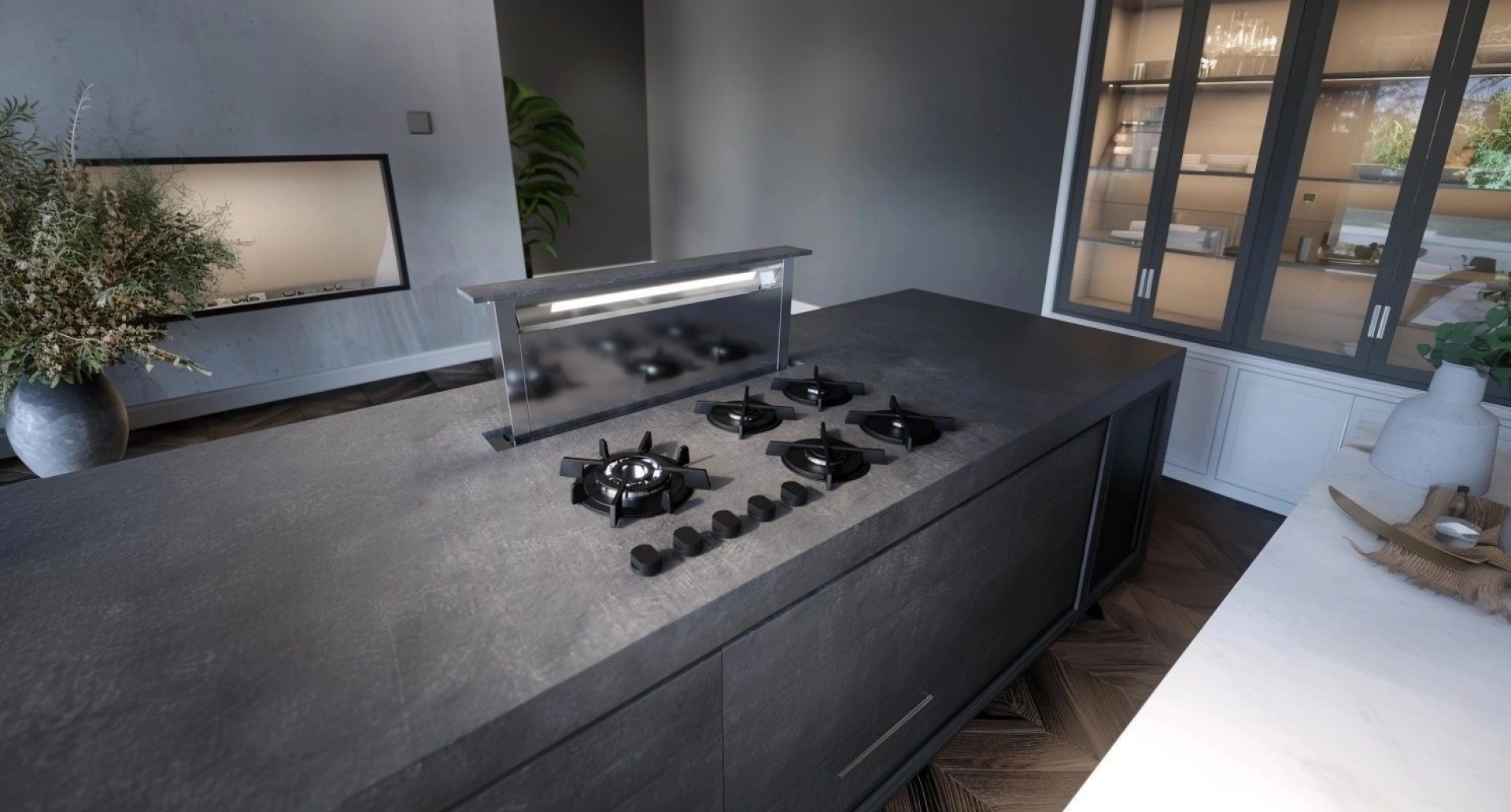

Stone is the downdraft hood which perfectly blends in with every kind of kitchen worktop.
You can customise the upper panel with the same worktop finish. Together with Sirius “frameless” installation technology, when the hood is off, you get a unique flush top effect. Then, when in function, the downdraft rises from the worktop.
This product is available in 90 cm and 120 cm, the structure is in Aisi 304 stainless steel and it is equipped with a high efficiency led lighting.
You can choose between different kind of installations, that is with on board motor or remote motors (indoor or outdoor)
STONE
Motor:
available with motor on board or external motor (to be purchased separately)
Lighting:
1x5W Led strip (835mm version)
1x9W Led strip (1135mm version)
Control:
Touch control 4 speeds+timer+light
Remote control
Filter:
Anodized aluminum (4+1 layers)
Material:
Stainless Steel
Cut out:
Create a niche in the countertop using the following dimensions
100x837mm (835mm version)
100x1137mm (1135mm version)
Anti-crushing safety system
ENERGY LABEL
| PRODUCT | DIM. | MOTOR | IDENTIFIER | EEI | |||
|---|---|---|---|---|---|---|---|
| STONE | 835 | on board | D002088PB1282415 | A | ENERGY LABEL | TECH FICHE | Drawing |
| STONE | 1135 | on board | D002118PB1282717 | A | ENERGY LABEL | TECH FICHE | Drawing |
| STONE EM | 835 | SEM1 1000m3/h | D002088PB1292415 | B | ENERGY LABEL | TECH FICHE | Drawing |
| STONE EM | 835 | SEM2 1000m3/h | D002088PB1292415 | C | ENERGY LABEL | TECH FICHE | Drawing |
| STONE EM | 835 | SEM8 1200m3/h | D002088PB1172415 | C | ENERGY LABEL | TECH FICHE | Drawing |
| STONE EM | 835 | SEM10 800m3/h | D002088PB1302415 | C | ENERGY LABEL | TECH FICHE | Drawing |
| STONE EM | 835 | SEM12 1000m3/h | D002088PB1312415 | A | ENERGY LABEL | TECH FICHE | Drawing |
| STONE EM | 1135 | SEM1 1000m3/h | D002118PB1292717 | A | ENERGY LABEL | TECH FICHE | Drawing |
| STONE EM | 1135 | SEM2 1000m3/h | D002118PB1152717 | C | ENERGY LABEL | TECH FICHE | Drawing |
| STONE EM | 1135 | SEM8 1200m3/h | D002118PB1172717 | B | ENERGY LABEL | TECH FICHE | Drawing |
| STONE EM | 1135 | SEM10 800m3/h | D002118PB1172717 | C | ENERGY LABEL | TECH FICHE | Drawing |
| STONE EM | 1135 | SEM12 1000m3/h | D002118PB1312717 | B | ENERGY LABEL | TECH FICHE | Drawing |
