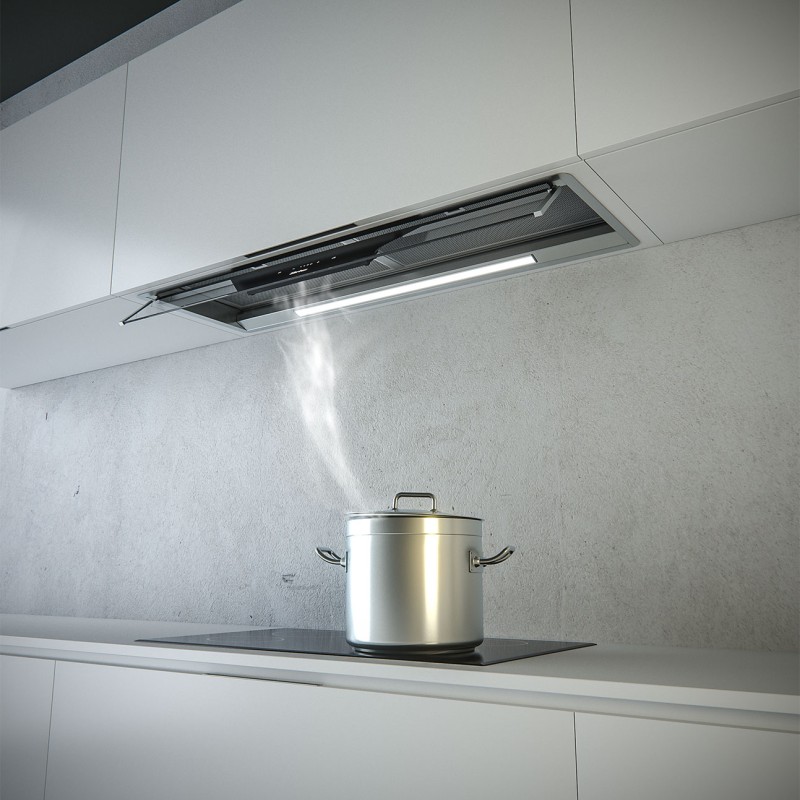

Wing SLTC919 is the new built-in hood from Sirius. Equipped with LED light, it is activated by the touch screen interface on the glass panel. This panel, which rotates thanks to the hinges, opens allowing both to display the controls and to channel the vapors to the suction grille and then closes and hides again inside the furniture when the kitchen hood is not in function
SU919
Code
SU91920X
SU91927X
SU91934X
Motor:
600 CFM Aluminium die-cast motor housing
Lighting:
1x3.75 W Dimmable and dynamic Led bar (2700 to 6500°K) (20’’ version)
1x6 W Dimmable and dynamic Led bar (2700 to 6500°K) (27’’- 34’’ version)
Control Panel:
Touch control 4 speeds + delay off timer + light switch
Grease Filter:
Anodized aluminium (5+1 layers)
Air Outlet:
6” round
Discharge:
Vertical and horizontal
Accessories:
- Charcoal filters:
KF30 (order 1 pc for 20” version) cod. 60071309905
KF53 (order 2 pc for 27” version) cod. 60071919006
KF8 (order 2 pcs for 34” version) cod. 60080478002
Cut Out:
For 20” version: 10” 7/16 x 19” 39/64
For 27” version: 10” 7/16 x 26”3/8
For 34” version: 10” 7/16 x 32” 19/32
ENERGY LABEL
| PRODUCT | DIM. | MOTOR | |
|---|---|---|---|
| SU919/SUE919 | on board | Drawing |
